Parallax Test 4

April 27, 2018

It is necesary to fix that “z-fighting noise”. As solution, a depth texture used as z-buffer should solve that z-figthing:

...
#pragma kernel WriteDepth
...
RWTexture2D<int> Depth;
...

[numthreads(32, 32, 1)]
void Clear(uint3 id : SV_DispatchThreadID) {
    ...
    Depth[id.xy] = -1;
}

[numthreads(32, 32, 1)]
void WriteDepth(uint3 id : SV_DispatchThreadID) {
    float height = DecodeFloatRGBA(DepthTexture[id.xy]);
    float displacementFactor = height * ParallaxAmount * RelativePosition;
    uint2 newUV = uint2((id.x + displacementFactor) % 4096, id.y);
    int heightInt = height * 1024;

    InterlockedMax(Depth[newUV.xy], heightInt);
    AllMemoryBarrier();
}

[numthreads(32, 32, 1)]
void DisplaceAlbedo(uint3 id : SV_DispatchThreadID) {
    float height = Depth[id.xy] / 1024.0f;
    float displacementFactor = height * ParallaxAmount * -RelativePosition;
    uint2 newUV = uint2((id.x + displacementFactor) % 4096, id.y);

    if (height != -1) {
        Result[id.xy] = float4(AlbedoTexture[newUV.xy].rgb, 1.0f);
    }
}

At the moment of press play with this shader, nothing had change. After several tests, the only answer to the problem should be that InterlockedMax function does not work with textures.

...
RWStructuredBuffer<int> Depth;
...
uint bufferPos(uint3 id) {
    return id.x + id.y * 4096;
}

[numthreads(32, 32, 1)]
void Clear(uint3 id : SV_DispatchThreadID) {
    Result[id.xy] = float4(1.0f, 0.0f, 1.0f, -1.0f);
    Depth[bufferPos(id)] = -1;
}

[numthreads(32, 32, 1)]
void WriteDepth(uint3 id : SV_DispatchThreadID) {
    ...
    InterlockedMax(Depth[bufferPos(newUV)], heightInt);
    AllMemoryBarrier();
}

[numthreads(32, 32, 1)]
void DisplaceAlbedo(uint3 id : SV_DispatchThreadID) {
    int heightInt = Depth[bufferPos(id)];
    float height = (heightInt / 4096.0f);
    ....
    float3 albedoColor = heightInt == -1 ? float3(1.0f, 0.0f, 1.0f) :
                                           AlbedoTexture[newUV.xy].rgb;
    Result[id.xy] = float4(albedoColor, height);
}

Changing the RWTexture2D<float4> to a RWStructuredBuffer<int> the results have improved a lot but some anoying noise was still there. Changing depth map options and albedo options, the noise was more regular and less frequent.

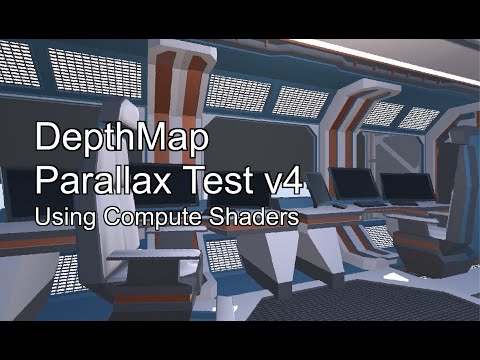

Test 4

Making research

April 25, 2018

Looking at other works to get inspired, some of them was made using a high-poly sphere and displacing vertex to simulate parallax. That have many restrictions as well as a performance problem when “high-poly” is too much vertices to handle.

Vertex displacement project from Joan: https://github.com/IraltaVR/6DoF

@soylentgraham from Twitter made some tips and provided a link to his “PopDepthMap360” project using kinect.

After some time searching solutions, we evaluate that use textures as point cloud should be the best way to work, and we decided to try compute shaders

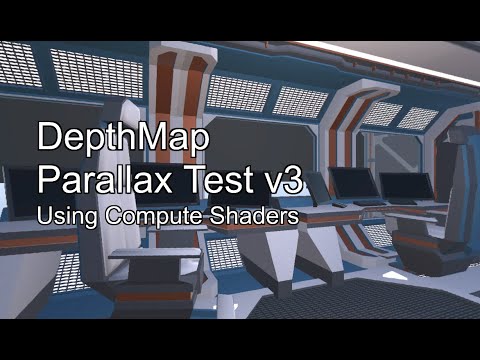

Parallax Test 3

April 20, 2018

Last test makes 40 texture fetchs to select the best texel to ocuppy the current fragment, this also means that pixels can be moved only by 40 pixels, if more movement is required more fetchs should be done.

The main reason to fetch so much texels is the restriction of fragment shader on writing at a different position of the textures. To solve this restriction, the usual shader is replaced by a compute shader.

Here is the first compute shader developed:

// Public kernels -----------------------
#pragma kernel Clear
#pragma kernel DisplaceAlbedo

#include "UnityCG.cginc"

// Config -------------------------------
// 360 stereo depth texture (IN)
Texture2D<fixed4> DepthTexture;
// 360 stereo albedo texture (IN)
Texture2D<fixed4> AlbedoTexture;
// 360 stereo computed result (OUT)
RWTexture2D<float4> Result;
// Same config parameters as shader in Test 1 and 2
float RelativePosition;
float ParallaxAmount;


// initialize result with pink to see gaps
[numthreads(32, 32, 1)]
void Clear(uint3 id : SV_DispatchThreadID) {
    Result[id.xy] = float4(1.0f, 0.0f, 1.0f, -1.0f);
}

[numthreads(32, 32, 1)]
void DisplaceAlbedo (uint3 id : SV_DispatchThreadID) {
    // Decode height from depth
    float height = DecodeFloatRGBA(DepthTexture[id.xy]);
    // compute displacement
    float displacementFactor = height * ParallaxAmount * RelativePosition;
    // apply displacement
    uint2 newUV = uint2((id.x + displacementFactor) % 4096, id.y);

    // return albedo at computed position
    Result[newUV.xy] = float4(AlbedoTexture[id.xy].rgb, 1.0);
}

The first problem that appeared at this moment is about concurrency. When a thread compute the new UV, it is done using height and many pixels can compute the same UV. If that happens, something similar to z-fighting is rendered.

In the video below it can be seen (near the windows is more noticeable).

Test 1

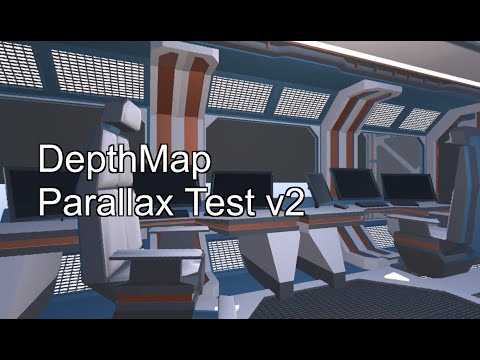

Parallax Test 2

April 17, 2018

To solve the parallax test 1 errors, the current pixel should look at the neighborhood and calculate wich is the best pixel to occupy the current pixel.

That idea make lots of texture fetchs. When observer is displaced, every pixel should move on the same direction with diferent displacement amount. Taking that into account, the number of fetchs will be optimized only looking through the pixels into the displacement line.

With this algorithm the main problem is that many pixels wont have a good fetch to fill it. At the moment, this pixels will be pink.

The new fragment code is a bit more complicated:

float4 frag (v2f i) : SV_Target {
    // fetch height and initialize variables
    float height = DecodeFloatRGBA(tex2D(_DepthTex, i.uv));
    float maxHeight = 0;
    float2 bestUV = 0;
    float u = 0;
    bool found = false;

    // texel size with a sign depending on displacement
    float texelSignedSize = sign(-_RelativePosition) * _DepthTex_TexelSize.x;

    // displacement factor as in test 1
    float displacementFactor = _ParallaxAmount * -_RelativePosition * _DepthTex_TexelSize.x * 40;

    for (int itCount = 0; itCount < 40; itCount++) {
        // fetch each pixel in the selected row
        float2 currUV = i.uv + float2(u, 0);
        float currCellHeight = DecodeFloatRGBA(tex2D(_DepthTex, currUV));
        float currCelluDispl = currCellHeight * displacementFactor;
        // compute where the current fetched texel should be displaced
        float2 newUV = currUV + float2(currCelluDispl, 0);

        // if the fetched texel is in the bounds of current pixel
        // is a good candidate
        if (abs(newUV.x - i.uv.x) <= _DepthTex_TexelSize.x) {
            // if is the least deep pixel, is the best candidate until now
            if (currCellHeight >= maxHeight) {
                maxHeight = currCellHeight;
                bestUV = currUV;
                found = true;
            }
        }
        // iteration pass
        u -= texelSignedSize;
    }

    // if there is a good candidate paint the pixel from albedo.
    // in other case paint it pink
    return found ? gammaCorrect(tex2D(_MainTex, bestUV)) : float4(1.0, 0.0, 1.0, 1.0);
}

This aproach is considerably better than last one, here it is the results.

Test 2

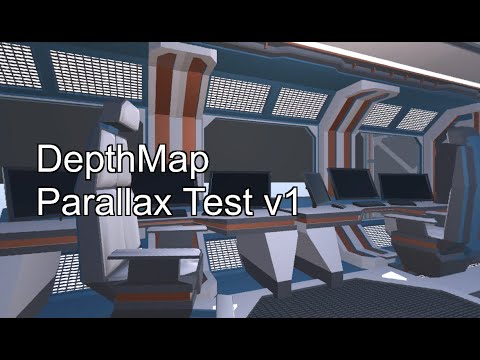

Parallax Test 1

April 12, 2018

It is need make parallax in a plane image, it is needed to “move” pixels over the rendering surface. To make this possible the first idea is to use a shader.

Two additional parameters are provided:

  1. Parallax Amount: how much a pixel should move taking in account its depth.
  2. Relative Position: simulated displacement of the camera on the x axis (at view space).

This parameters are choosen to get faster results and check the problems, in the future will be calculated realtime.

The vertex shader is not interesting for what concerns us. The fragment shader is this:

float4 frag (v2f i) : SV_Target {
    // Getting depth form texture
    float h = DecodeFloatRGBA(tex2D(_DepthTex, i.uv));
    // Calculus of the displacement using decoded depth
    float uDisplacement = h * _ParallaxAmount * _RelativePosition * _DepthTex_TexelSize.x * 40;
    // Getting a pixel in the displaced direction.
    return gammaCorrect(tex2D(_MainTex, i.uv + float2(uDisplacement, 0)));
}

Obviously this is a bad aproach. The pixel is chosen taking in acount the current pixel height and not the other pixel height. This is the visual result:

Test 1

Objective of the project

April 9, 2018

The main objective is to reach 6 DOF in VR in 360 images using a few images to get it working. Parallax will be the main way to work.

What is Parallax

If an observer take a picture and then move the camera (without rotation) to the right and take another picture, some objects or a part of them that appear in the first picture will be occluded by other objects. Comparing both pictures and taking the first as reference, the nearby elements are apparently more displaced in the second picture than the distant ones. Thats because the human eye and cameras see as a persepective projection.

That phenomenon is called parallax.

Octocat

Parallax example from imgur

Source images to work with

The source items to build it will be two images: the albedo and the depth map of the scene.

In order to get clean tests, the images will be generated by a renderer (getting a perfect depth field image). In a late stage, when the parallax is working, the images will be replaced for real images to discover the problems of our method with them.

The engine

To get faster results, a comercial engine will be used. The choosen one is Unity.
